Specificatuin:

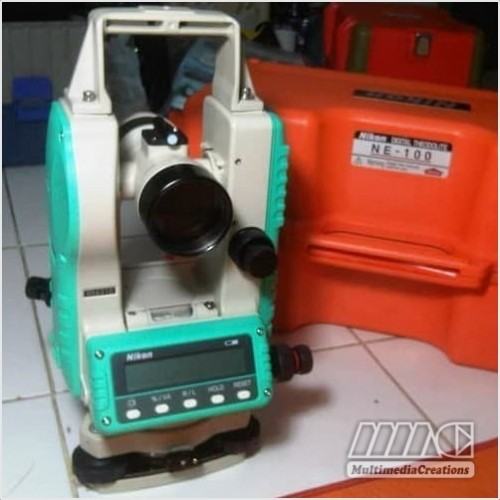

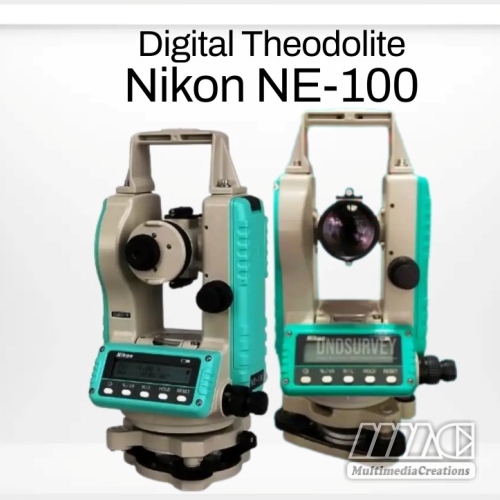

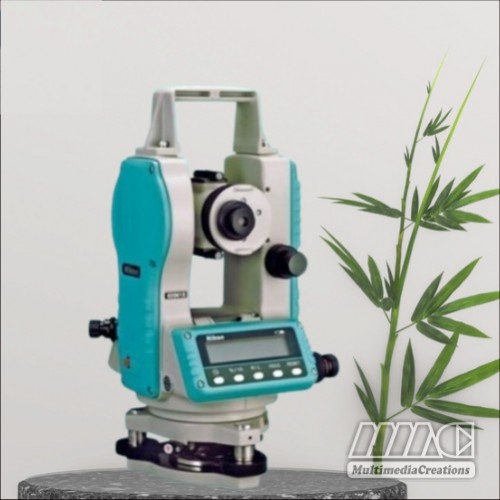

- The Nikon NE-100 is a digital theodolite with the following specifications:
- Telescope: 45 mm objective diameter, 30x magnification, 1°20' field of view at 100 m, and 0.7 m minimum focusing distance
- Display: 20 character x 2 line dot-matrix LCD with a one-level backlight
- Keypad: Five buttons
- Optical plummet: 2.2x magnification, 5° field of view, and 1.3 m fixed focus range
- Level sensitivity: 60"/2 mm plate level and 10'/2 mm circular level
- Environmental rating: IP54, meaning it's water and dust resistant
- Power supply: Six 1.5 V AA batteries
- Continuous operating time: 48 hours at 68°F (20°C)
- Dimensions: 153.5 x 172 x 334 mm (6.0 x 6.8 x 13.1 in)
- Weight: 4.5 kg (9.8 lb)
Theodolite

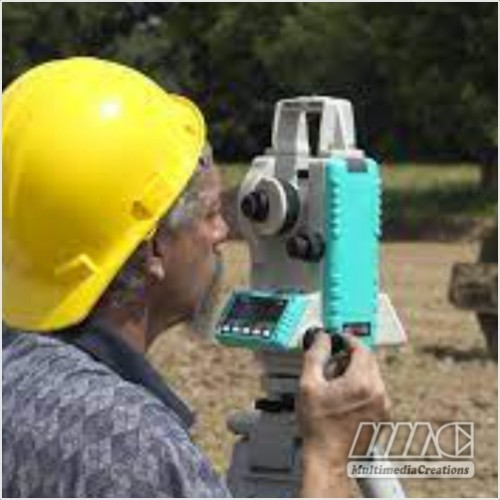

The Nikon NE-100 is designed for construction and general surveying applications. It's easy to use and reliable, and can be used for alignment, concrete form alignment, anchor bolt positioning, and steel column erection.
